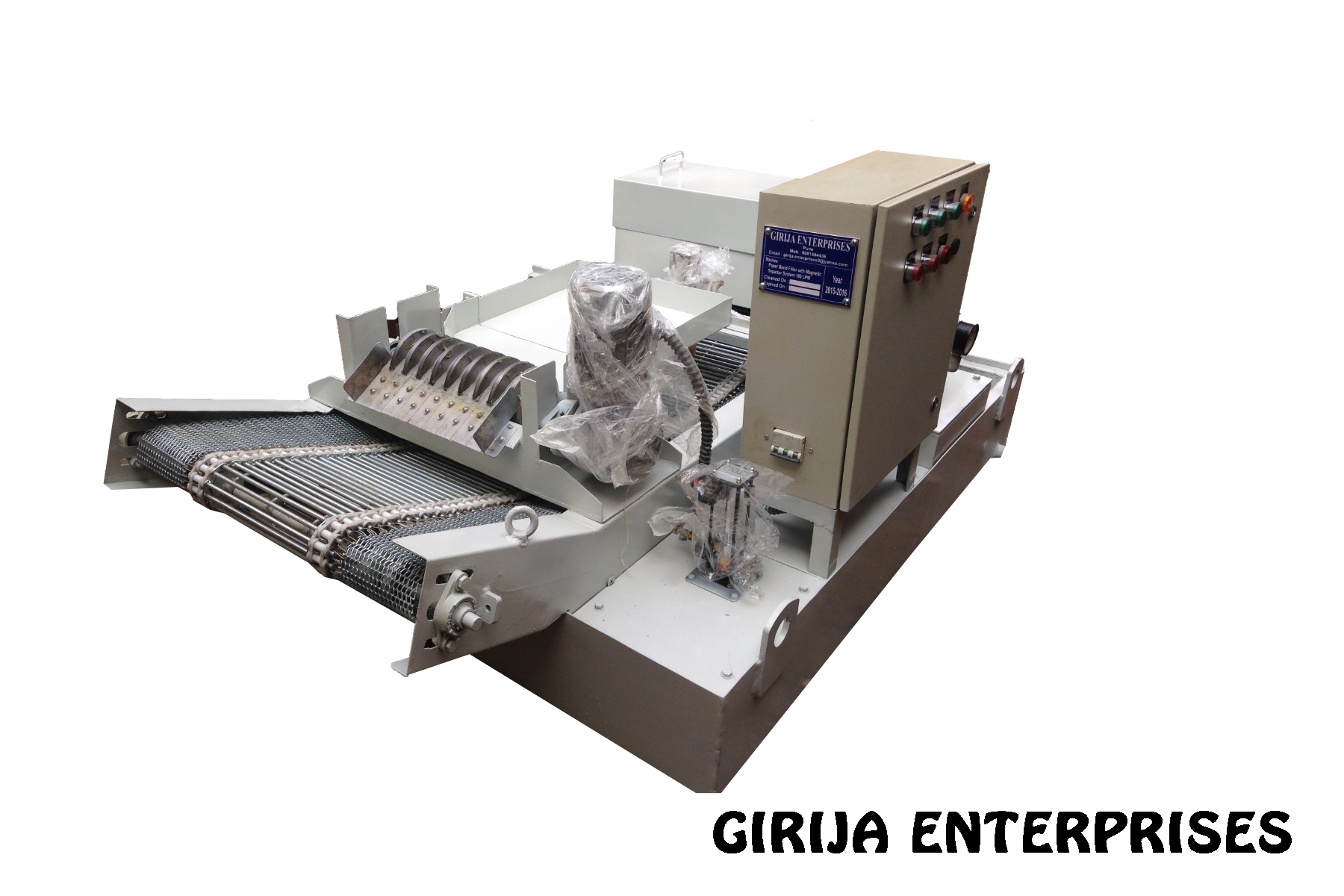

Paper Band Filters

Paper Band Filters

Flow Rate	20 – 100 LPM (Std. Models)
Filtration	15, 25, 50 Micron
MOC	MS, SS304
Add-ons	Magnetic Separator, Skimmer
Operation	Fully automatic, very low maintenance

Coolant filter paper is essential for maintaining the efficiency and longevity of industrial coolant systems. It effectively removes contaminants and particles from coolant or cutting fluid, ensuring machinery operates at peak performance.

Key points include:

• Material and Construction: Coolant filter paper is typically made from premium quality filter paper material, designed to withstand harsh industrial conditions.
• Applications: It is used in various industrial applications, including metalworking, machining, automotive, and more.
• Filtration Efficiency: The micron rating indicates the maximum pore size, influencing contaminant removal and coolant flow.
• Maintenance: Regular maintenance is crucial to ensure the longevity and effectiveness of the filter paper.

Band filters are the simplest and oldest form of filters. GIRIJA Band filter is one more step towards additional simplicity — without a moving conveyor, eliminating jamming and breaking concerns.

A standard magnetic separator can be added to improve efficiency.

• Filter media laid on perforated tray fitted on tank
• Dirty fluid drops on media; clean fluid collected below and pumped back
• Level switch senses choking; geared motor pulls dirty media via racking mechanism

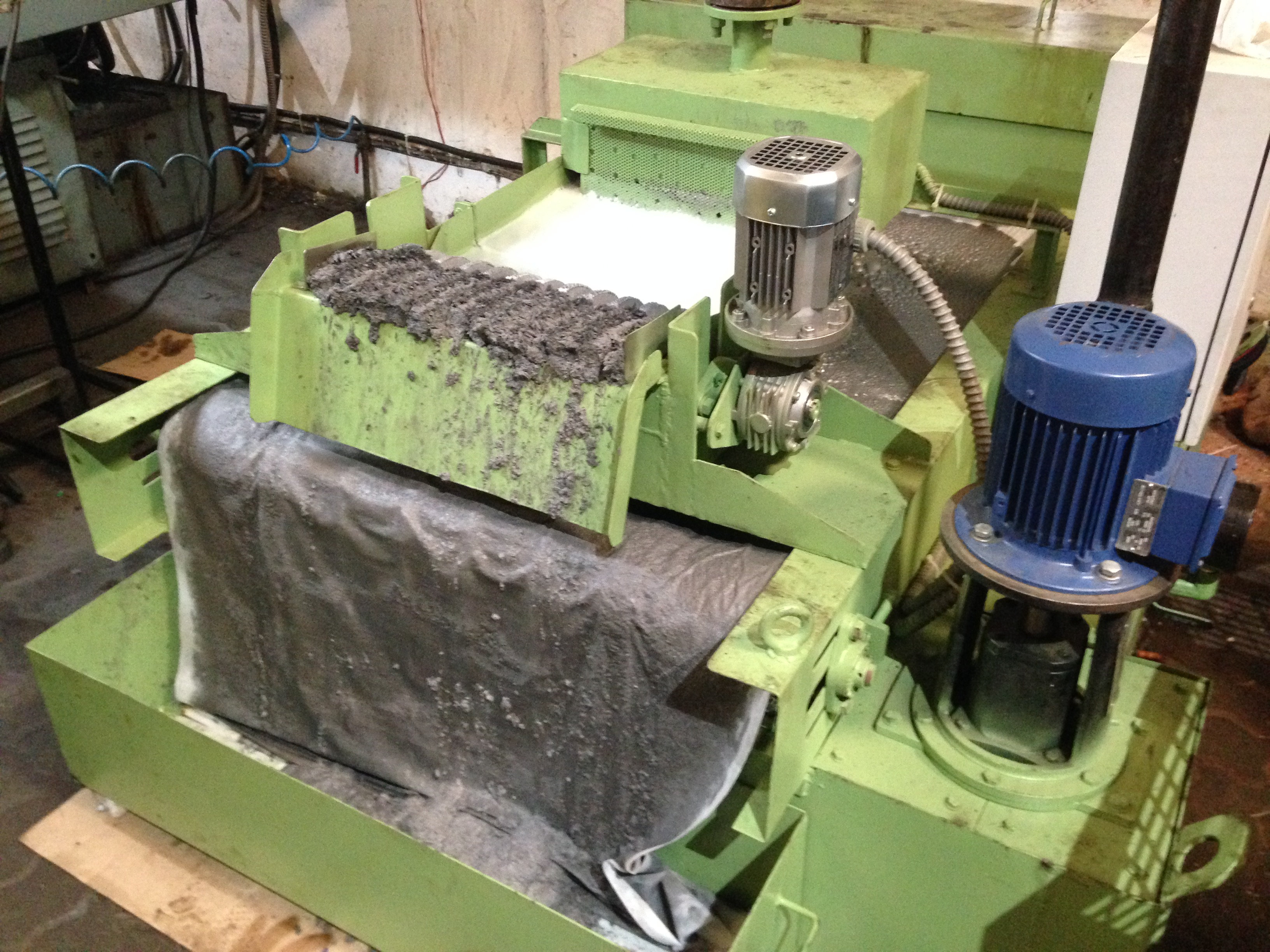

With Magnetic Separator

Integrated magnetic separation and band filtration for enhanced chip removal before fine media filtration — ideal for machining centres and grinding applications.
